₹ 92,512.00 GST included
Complies with UL -864 and NEPA -72. 20 x 4 dot matrix LCD display. Operates on 120 – 220VAC 60 /50 Hz, AC mains power supply. Standby (battery) backup 24 VDC power supply with built in charger. Touch keypad for user friendly operation. Epoxy powder coated finish. Class- B, Style B / C initiating device circuit (IDC). All zones accept smoke detectors and normal open contact devices. Class B notification appliance circuits (NAC). NAC shall be programmed as AUTO SILENCE / Silence Inhibit. Error free Fire / Fault status in unambiguous colored LED indication. 1000 Event storage with RTC. Main, Standby status with audible and visual indication. Two Form C relays for fire and fault. Resettable / Steady 24VDC. Output. RS 485 Communication facility. TCP/IP facility (Optional) MODBUS for Building Management System integration (Optional). PC software (optional) External zone wise sounder/contact via RS 485 (Optional). All field wiring circuits are supervised. Zone Isolation facility with loop voltage cut off. Zones available : 12, 16, 20, 24, 32, 48, 64,96 and 128. Facility to connect Public Address System (PA) through RS-485 Comm Peer to Peer network facility. Maximum 16 panels can be connected to a single network. 20 X 4 Dot Matrix LCD display. Alphanumeric keypads. RS 485 Communication for Network Repeater. System ON, AC ON, Battery ON, Charger ON indications. Lamp test facility. Maximum 16 panels including repeater can be connected in a Single Network.
For 365 days
Only Reputed Brands
Multiple payment options

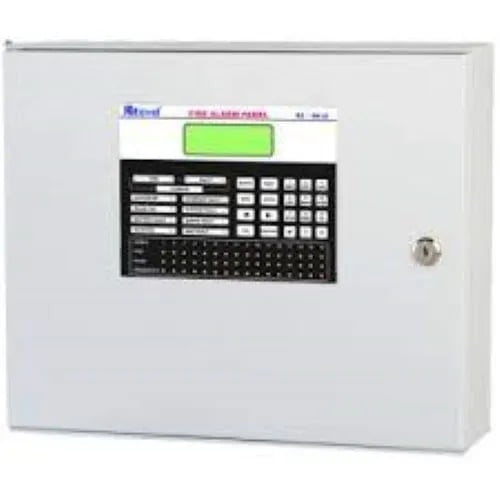

RE-900 Series, Microprocessor based conventional Fire Alarm Control Panel, are designed to be used for medium and large size commercial complexes and industrial establishments. This panel can accommodate a range of 12 zones upto 128 zones. User friendly systems which involves a touch keypad to program the panel. This can be used as a standalone or networkable panel. Complies with UL -864 and NEPA -72. 20 x 4 dot matrix LCD display. Operates on 120 – 220VAC 60 /50 Hz, AC mains power supply. Standby (battery) backup 24 VDC power supply with built in charger. Touch keypad for user friendly operation. Epoxy powder coated finish. Class- B, Style B / C initiating device circuit (IDC). All zones accept smoke detectors and normal open contact devices. Class B notification appliance circuits (NAC). NAC shall be programmed as AUTO SILENCE / Silence Inhibit. Error free Fire / Fault status in unambiguous colored LED indication. 1000 Event storage with RTC. Main, Standby status with audible and visual indication. Two Form C relays for fire and fault. Resettable / Steady 24VDC. Output. RS 485 Communication facility. TCP/IP facility (Optional) MODBUS for Building Management System integration (Optional). PC software (optional) External zone wise sounder/contact via RS 485 (Optional). All field wiring circuits are supervised. Zone Isolation facility with loop voltage cut off. Zones available : 12, 16, 20, 24, 32, 48, 64,96 and 128. Facility to connect Public Address System (PA) through RS-485 Comm Peer to Peer network facility. Maximum 16 panels can be connected to a single network. 20 X 4 Dot Matrix LCD display. Alphanumeric keypads. RS 485 Communication for Network Repeater. System ON, AC ON, Battery ON, Charger ON indications. Lamp test facility. Maximum 16 panels including repeater can be connected in a Single Network.
